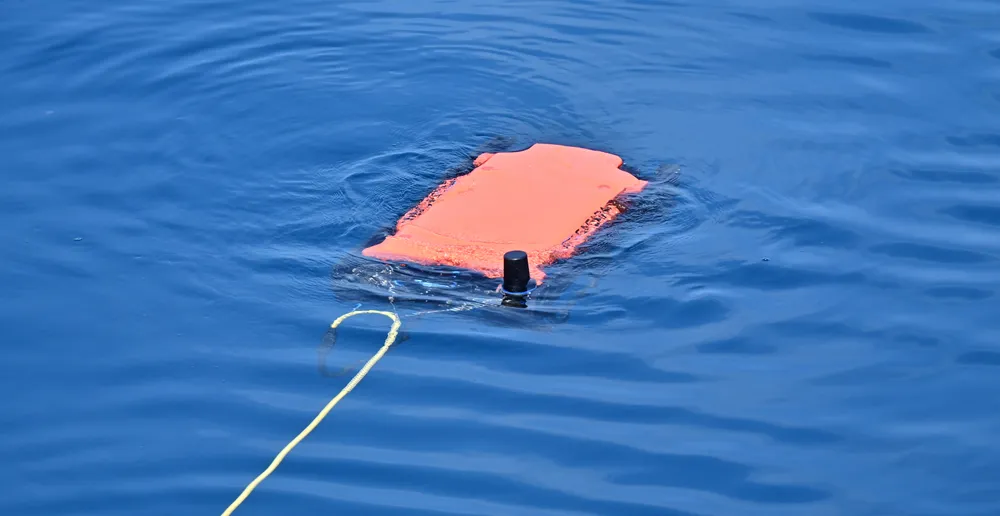

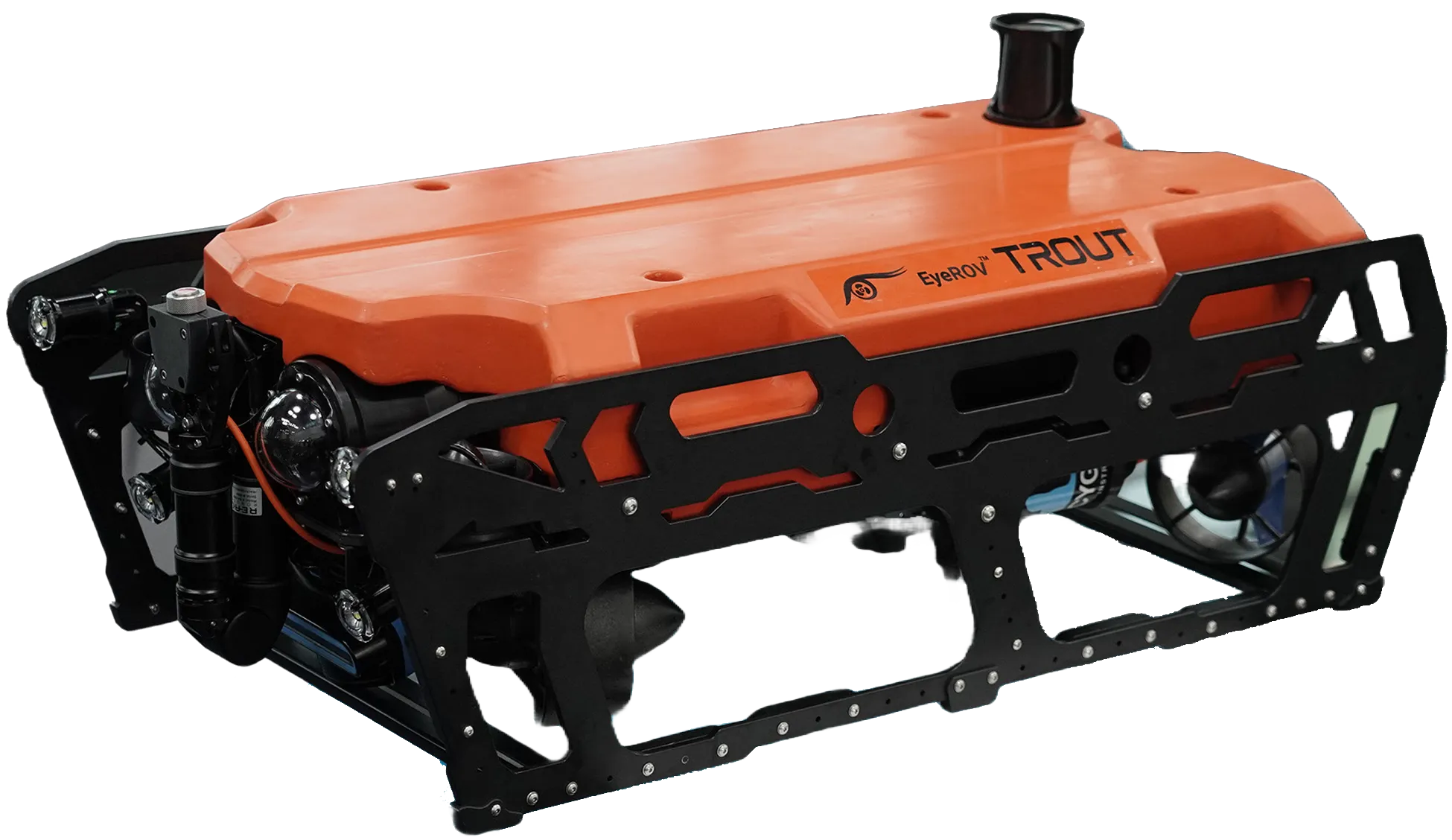

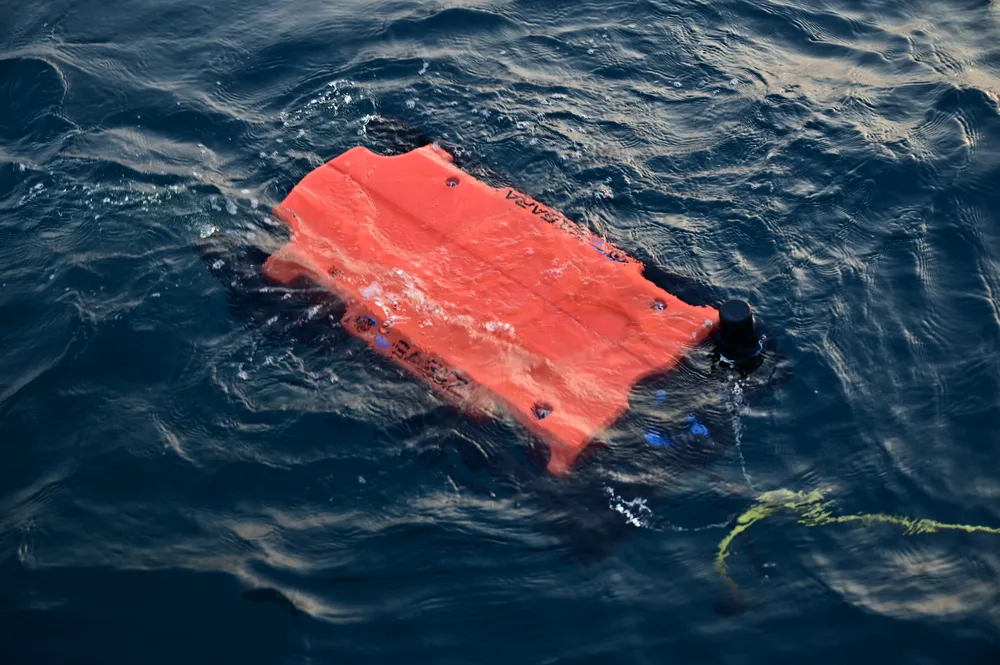

TROUT
Military-Grade ROVengineeredfor Deep-Sea missions,featuring Autonomous-Navigation, AdvancedImaging,andRuggedConstruction.
- 4KCamerawith10xZoom
Capture sharp and detailed visuals with optical zoom.
- 300mDepthCapability
Operate at extreme depths with confidence.
- 6DoFManeuverability
Unparalleled movement control in all directions.
- 3+KnotsTopSpeed
Swift and efficient movement in deep waters.
- 6000-LumenLightingSystem
Powerful lighting for dark and murky waters.
- 400mNeutrallyBuoyantTether
Ensures stable operation with a 400m tether.
HighlightFeatures
- i-Control Hub An intuitive navigation software suite offering real-time views of cameras, SONAR, and positioning data overlaid on S63 ENCs for seamless operation.
- Seamless Integration Supports a wide range of advanced payloads and allows for easy integration of additional tools, ensuring versatility for diverse missions.
- Indigenously Developed Proudly designed, developed, and manufactured in India, engineered to excel in the most demanding underwater environments.
- Modular Design Features a modular architecture for quick upgrades, easy maintenance, and enhanced adaptability to evolving mission requirements.
- Advanced Navigation Equipped with auto-depth, auto-heading, and GPS waypoint navigation for precise and autonomous underwater operations.
- Robust Payload Options Includes a 3 DoF robotic arm, imaging SONAR, and ultrasonic thickness gauge for versatile underwater tasks.
Payloads
Enhance your ROV experience with our advanced payload systems and equipment.

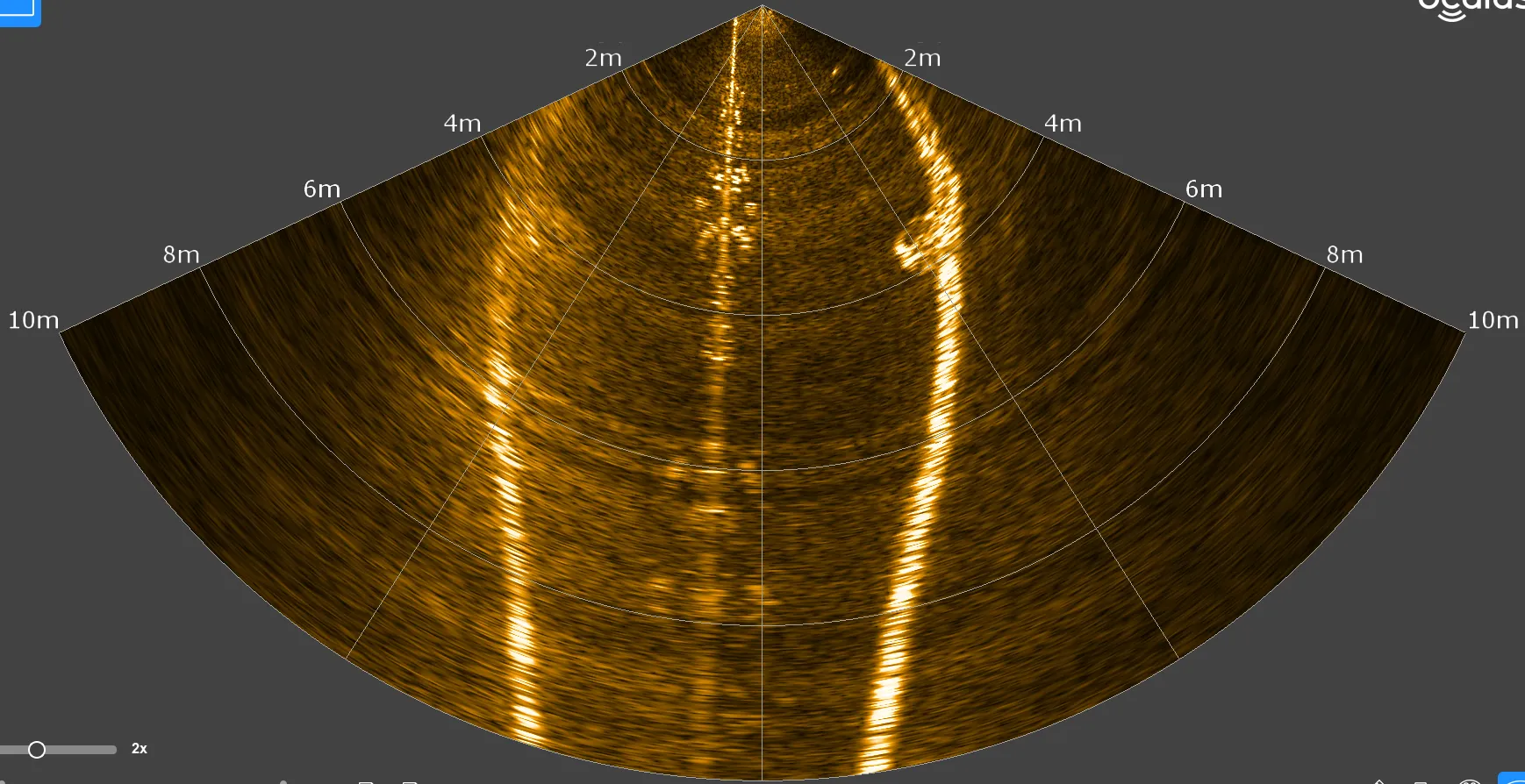

- Imaging SONARCrystal-clear underwater imagery, even in poor visibility.
- Side Scan SONARHigh-resolution seabed mapping and object detection.

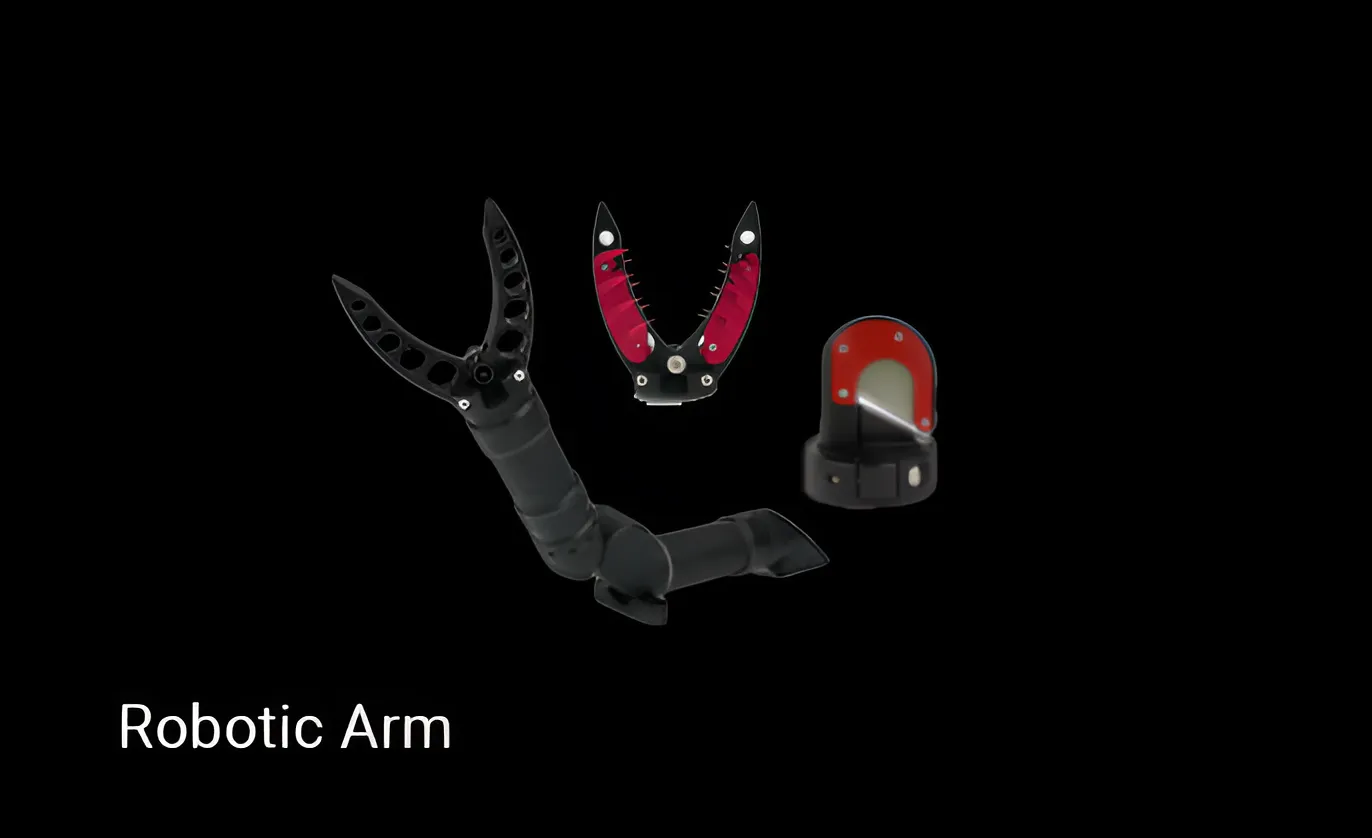

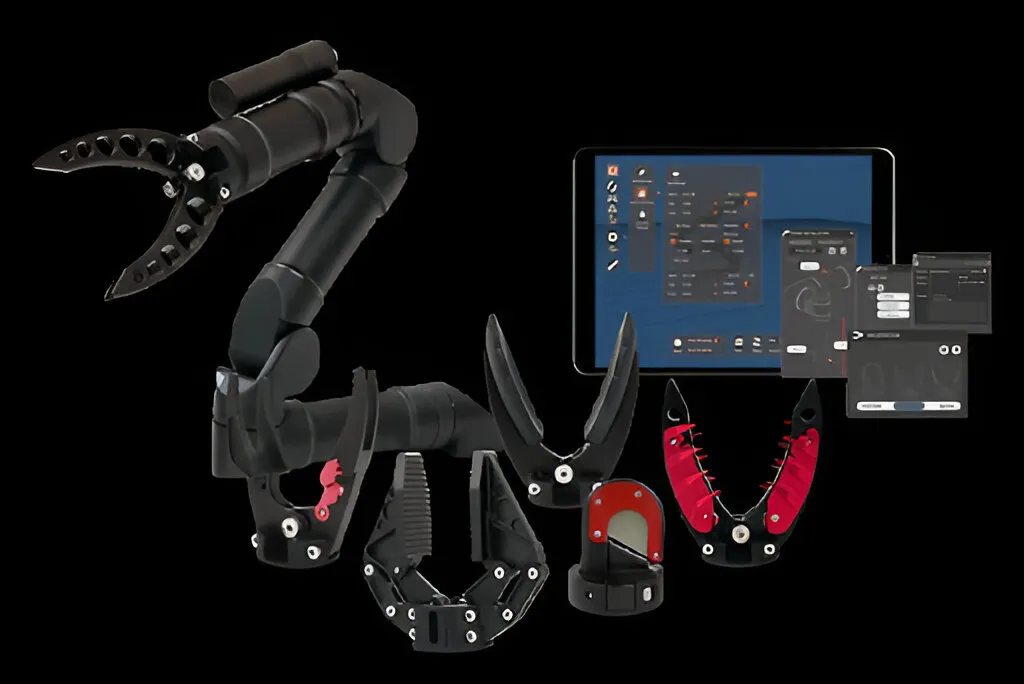

- Robotic Arm3 DoF arm equipped with grabber, rope cutter and recovery jaws.

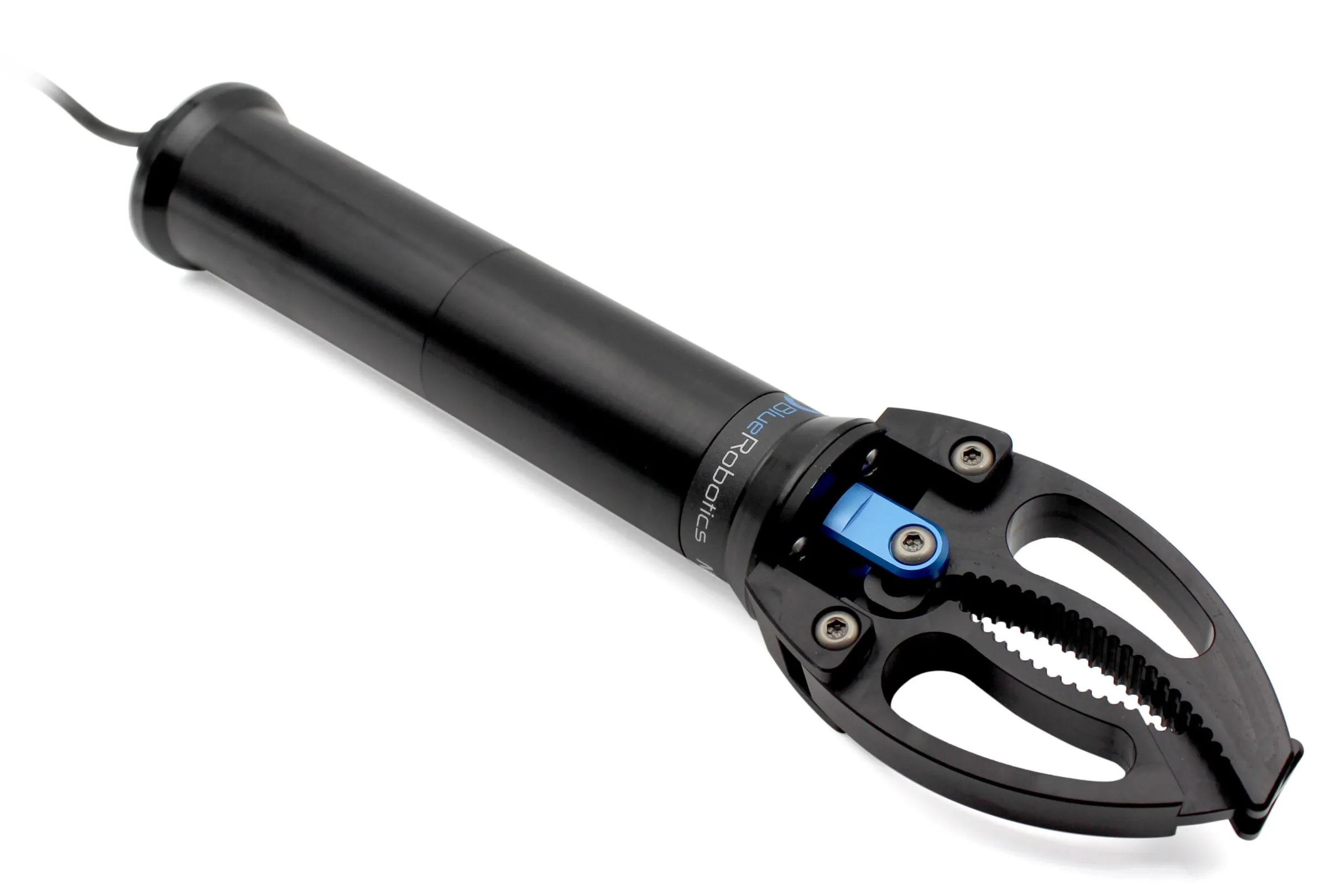

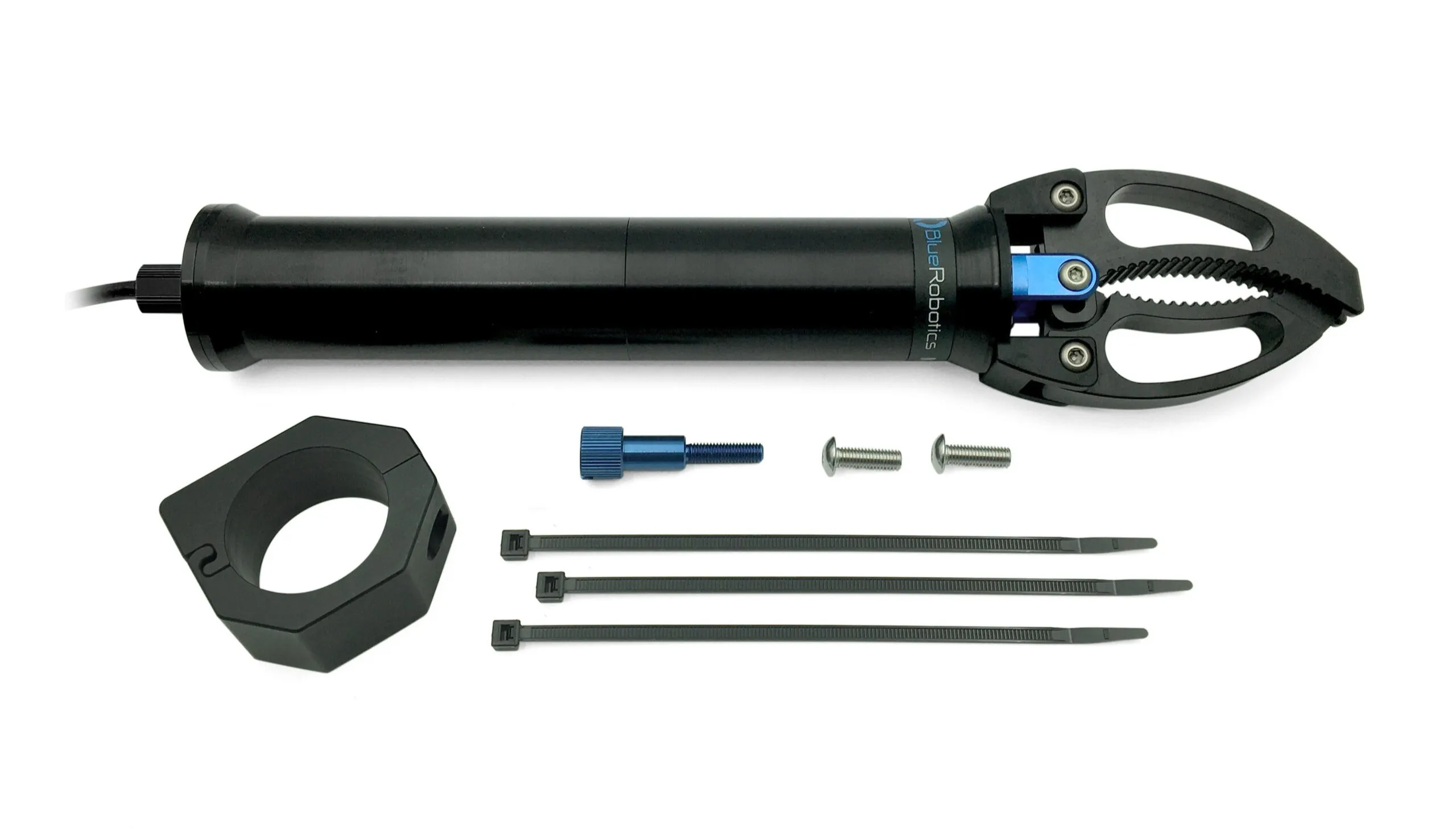

- Newton GripperRetrieve objects, Attach Recovery Lines, Free Snagged Tether & more.

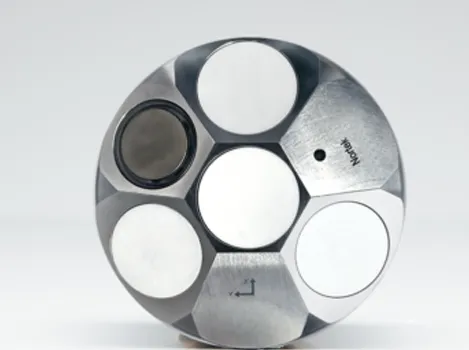

- Doppler Velocity Log (DLV)High-precision Doppler Velocity Log for accurate underwater speed and distance measurement.

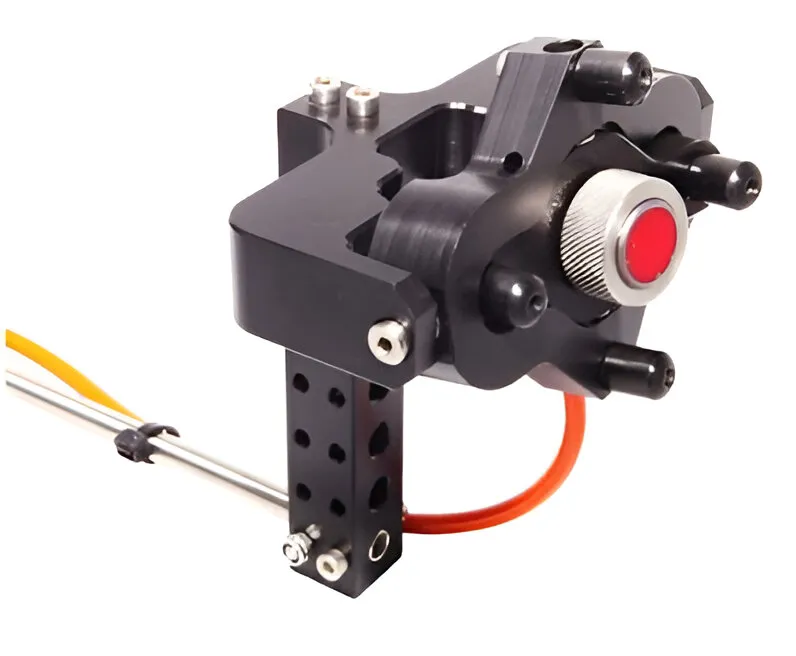

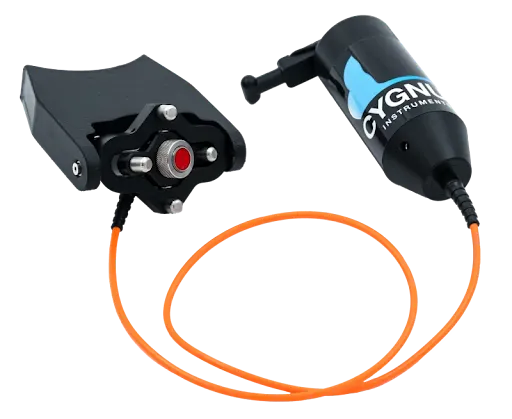

- Ultrasonic Thickness GaugeNon-destructive thickness measurements for structural integrity.
Applications
Explore the wide-ranging applications of our advanced ROVs, built for underwater exploration, inspection, research, and industry-specific challenges.
DefenseOur ROVs enhance defense operations with Surveillance, Reconnaissance, and Threat Neutralization, offering Advanced Imaging and Precise Maneuverability.
Learn More about Defense
MaritimeMonitor Coral-Reefs and Marine Ecosystems, assess Aquatic Health and track Biodiversity with High-Resolution Imagery for Conservation and Research.
Learn More about Maritime
Ports & ShipsOur ROVs inspect Port Infrastructure, detecting Structural Wear, Corrosion, and Damage to ensure Safe Operations.
Learn More about Ports & Ships
ResearchOur ROVs aid Underwater Research, helping Scientists Explore, Collect Data, and Conduct Experiments with Precision.
Learn More about Research
Search & RescueOur ROVs support Search and Rescue, locating Missing persons, Vessels, and Debris with High-Resolution Imaging and Precision Navigation.
Learn More about Search & Rescue
Specifications
- Accessories
- Storage Cases: Durable, shockproof cases to safeguard your ROV gear.
- Manuals: Comprehensive guides to master and maintain your ROV.
- Spare Parts: Essential spares to keep your ROV mission-ready anytime.
- Ballast
Modular (16 nos of 250g ballast weights)
- Cameras
Primary
- 4K H265 IP Camera
- 10x Optical Zoom
- 60° diagonal field of view
Secondary
- Full HD H264 IP Camera
- Wide Angle Lens with 120° diagonal field of view
- Tilt Function up to 90°
- Communication
- Control Station
- 21.5 inch Full HD IP65 Sunlight Readable
- Intel / ARM with NVidia GPU
- 8/16 Gb RAM
- Controller(Joystick) for Remote Control
- Software Suite Pre-installed
- Ports : Ethernet, USA A, USB C, HDMI
- Dimensions: 740 x 720 x 640 (mm)
- Power Input: 400 VDC 10 A
- Safety
- GFCI/RCD, Emergency Stop, LIM
- Control Station
- Dimensions
760 x 600 x 600 (mm)
- Lights
4 x 1500 Lumens LED Lights
- Maneuverability
6 DoF (Surge, Sway, Heave, Pitch, Roll, Yaw)
- Operational Depth
300 meters
- Payload
Capacity 4.0 kg
- Power
Input Power: 3600W, 400V DC
- Propulsion
- 4 x Vectored Horizontal Thrusters
- 3 x Vertical Thrusters
- Sensors
- 9 DoF IMU (Accelerator, Gyro, Compass)
- Depth Sensor
- Temperature Sensor
- Voltage & Current Sensor
- & More as required
- Speed
Above 3.0 Knots
- Tether
- Length - 400 meters
- Diameter - 13 mm
- Breaking Strength - 500 kgf
- Winch - Hand Operated
- Buoyancy
Neutrally Buoyant in Fresh Water - Dimensions
760 x 600 x 600 (mm)
- Weight
Less than 40 Kilograms
(excluding payloads)
 |  | | |
|---|---|---|---|
| Cameras | Primary
Secondary
|
|
|
| Communication |
|
|
|
| Dimensions | 760 x 600 x 600 (mm) | 500 x 400 x 550 (mm) | 500 x 400 x 550 (mm) |
| Lights | 4 x 1500 Lumens LED Lights | 6000 Lumens | 9000 Lumens |
| Maneuverability | 6 DoF (Surge, Sway, Heave, Pitch, Roll, Yaw) | 4 Degrees of Freedom | 4 Degrees of Freedom |
| Operational Depth | 300 meters | 200 meters | 300 meters |
| Payload | Capacity 4.0 kg | Capacity 2.0 kg | Capacity 2.0 kg |
| Power | Input Power: 3600W, 400V DC | 2 Li-ion Batteries |
|
| Propulsion |
|
|
|
| Speed | Above 3.0 Knots | 2.0 Knots | 2.0 Knots |
| Tether |
| 150 meters | 300 meters |
| Weight | Less than 40 Kilograms | 20 Kilograms | 22 Kilograms |
